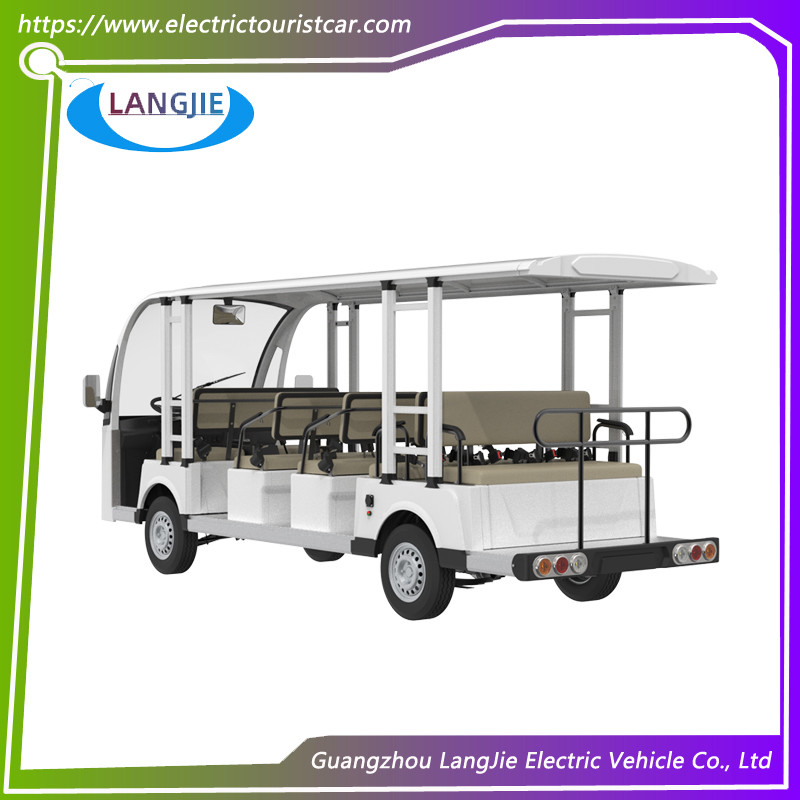

14 Seats Electric Tourist Car AC Motor Controller 72V 7.5KW For Child Tour Bus
Specification
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40' GP(Assembled) | 2 units |
| | |
| Specifications |
| Performance: |
| Passenger capacity | 14 seats |
| Range(loaded) | 90km |
| Max.Speed | ≤30m/h |
| Climbing Ability(loaded) | 20% |
| Braking Distance | ≤6.5m |
| Min.Turning Radius | ≤6m |
| Recharge time | 8~10h |
| Dimensions |
| L×W×H | 4985*1510*2120mm |
| Axle Distance | 2770mm |
| Vehicle Weight | 1230kg |
| Max. loading | 1190kg |
| Standard Configurations |
| Motor | 72V/7.5 KW AC motor |
| Controller | 72V |
| Battery | Maintenance-free battery 6V/170Ah*12pcs |
| Body & Roof | The high-strength composite material body (PP composite material injection-molded front hood) has excellent impact resistance./Enhanced composite material and aluminum alloy frame; lightweight, resistant to aging, and not prone to fading. |
| Windshield | See-through Laminated glass |
| Seats | PU car seat, ergonomic, adjustable structure for driver's seat. |
| Rear view mirror | 2pcs |
| Bumper | Rear Bumper |
| Tire | Vacuum radial tire 165/70R13, steel rim |
| Chassis | High-strength steel frame longitudinal beam chassis with electrophoresis and powder coating rust prevention treatment |
| Steering | Double rack and pinion steering with electric power assist system |
| Front Suspension | Front MacPherson independent suspension with coil springs and telescopic hydraulic shock absorbers |
| Rear suspension | Integral rear axle with leaf springs and telescopic hydraulic shock absorbers |
| Lighting system | LED headlights, fog lights, turn signals, taillights, horn, reversing beeper |
| Brake system | Front ventilated disc rear drum hydraulic dual-circuit braking system with handbrake parking, equipped with vacuum-assisted brakes |
| Charger | Intelligent high-frequency vehicle charger. Input voltage 220V, output 72V/25A. |
| Dashboard | Injection-molded dashboard with a combination switch, electric lock switch, emergency power-off switch, and a multifunctional LCD display (showing indicators for voltage, battery level, speed, mileage, and an entertainment playback system). It also includes USB/Type-C ports, storage compartments, and a cup holder. |
Photos
Safety
The 14 seats Tourist car is fitted with four-wheel hydraulic brakes and a foot activated parking brake as standard equipment. Regenerative engine braking is also standard, meaning the vehicle won’t take off when you’re not in it! All vehicles are fitted with headlights, indicators, brake lights and a horn.
Application:
* Used for School,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
Q1. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone.
Q2. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q3: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before shipment. Please contact us for more information.
